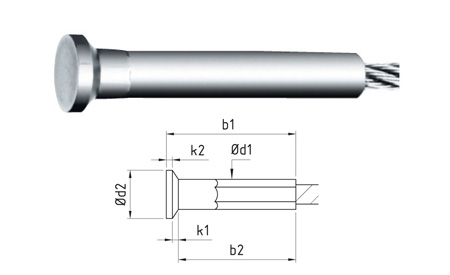

Swage end Stop 90º 866
The I-SYS® stainless steel swage end stop 90º countersunk head offers all of the attributes excpected of an end stop, just like the low profile version, but with greater resistance to pulling forces. It's increased size, means it's ability to endure greater breaking loads ensures security without sacrficing design.
The swage end stop 90º countersunk still gives a flush fitting on the external post, but is more suited to larger baluster sizes if invisibility of fittings is desired.
The I-SYS® stainless steel swage end stop 90º countersunk is available for stainless steel wire ropes from 2mm ø - 8mm ø which offers a good choice when selecting wire ropes to suit your balustrade, facade or wire trellis systems.
Material: Stainless steel AISI 316L - kN = Breaking load - All dimensions are in millimetres unless otherwise stated.
Buy Assembly
| Choose a type: | |
| Specify quantity: | |
| Price | |||||||||
| Part number | ø rope | b1 | b2 | ød1 | ød2 | k1 | k2 | kN | For Component |
| 866-0300 | 3 | 35.2 | 31 | 6 | 10.4 | 2.2 | 2 | 6.7 | £3.11 |
| 866-0400 | 4 | 39.7 | 36 | 7 | 10.4 | 1.7 | 2 | 12 | £3.35 |
| 866-0500 | 5 | 46.2 | 42 | 8 | 12.4 | 2.2 | 2 | 19 | £3.68 |
| 866-0600 | 6 | 55.2 | 52 | 10 | 12.4 | 1.2 | 2 | 27 | £3.83 |
| 866-0800 | 8 | 68.8 | 62 | 13 | 20.5 | 3.8 | 3 | 45 | £4.16 |
To purchase I-SYS® stainless steel wire rope to suit the above, click here to be redirected.
