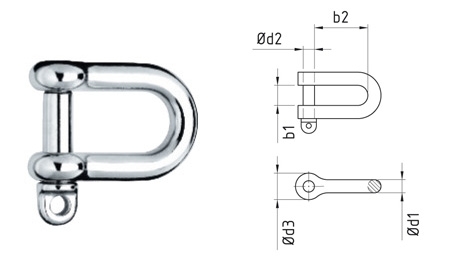

Shackle 835
Material AISI 316 - According DIN82102 - WLL = Working Load limit according to manufacturers data
Buy Assembly
| Choose a type: | |
| Specify quantity: | |
| Price for | |||||||
| Part number | Tons | b1 | b2 | ød1 | ød2 | ød3 | Accessory |
| 835-04 | 10.79 | 8 | 16 | M4 | 4 | 9 | £1.29 |
| 835-05 | 15.01 | 10 | 20 | M5 | 5 | 11 | £1.36 |
| 835-06 | 28.45 | 12 | 24 | M6 | 6 | 12 | £2.11 |
| 835-08 | 44.15 | 16 | 32 | M8 | 8 | 16 | £3.08 |
| 835-10 | 59.84 | 20 | 40 | M10 | 9 | 20 | £4.97 |
| 835-12 | 88.29 | 25 | 48 | M12 | 12 | 25 | £8.18 |
| 835-16 | 112.82 | 32 | 64 | M16 | 16 | 32 | £18.40 |
| 835-20 | 152.06 | 38 | 76 | M20 | 19 | 36 | £30.61 |
