Roll Swaged 650/655
Stainless steel external thread roll swaged male ends give a unique finish to our stainless steel wire ropes. The external thread roll swaged is ideal when the project requires installation on site. This is due to the possibility of purchasing or hiring one of our portable swaging machines (please call for details and pricing). With the Roll swaged threaded ends and our portable swaging machine extreme flexibility can be ascertained without losing some inherent security issues when using swageless connections.
An added bonus with our roll swaged threaded ends is that they come with European Technical Approval (ETA-10/0358) which is a recognised standard within the building industry.
Our stainless steel external thread roll swaged ends are available to suit stainless steel wires ropes from 6mm ø - 26mm ø and arrive in thread sizes from M10 - M36 respectively.
Material: Stainless steel AISI 316L - kN = [cal_Z,B,l] Breaking load.
Buy Assembly
| Choose a type: | |
| Specify quantity: | |
| Part number | Price | Price | ||||||

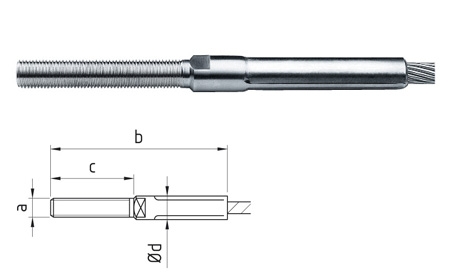

| RH thread | For Component | LH thread | For Component | ø rope | a | b | c | ød |
| 650-0600-045 | £8.63 | 655-0600-045 | £8.63 | 6 | M10 | 117 | 45 | 12.5 |
| 650-0800-060 | £12.81 | 655-0800-060 | £12.81 | 8 | M12 | 156 | 60 | 16.1 |
| 650-1000-076 | £21.44 | 655-1000-076 | £21.44 | 10 | M14 | 193 | 76 | 17.8 |
| 650-1200-090 | £35.56 | 655-1200-090 | £35.56 | 12 | M16 | 232 | 90 | 21.4 |
| 650-1400-110 | £55.42 | 655-1400-110 | £55.42 | 14 | M20 | 259 | 110 | 24.9 |
| 650-1600-130 | £62.94 | 655-1600-130 | £62.94 | 16 | M24 | 313 | 130 | 28 |
| 650-1800-140 | £98.89 | 655-1800-140 | £98.89 | 18 | M27 | 357 | 140 | 34.5 |
| 650-2200-170 | £207.89 | 655-2200-170 | £207.89 | 22 | M30 | 430 | 170 | 43 |
| 650-2600-170 | On Request | 655-2600-170 | On request | 26 | M36 | 475 | 170 | 45.9 |
