Radiused Head Stop 869
The I-SYS® stainless steel swaged radiused head end stop gives a minimalistic approach to wire rope termination. Pulled through to stop at the end of a balustrade post, the radiused head end stop show slight protrusion at the end of your post giving a smooth finish.
Once fitted, the other end of the stainless steel wire rope could be finished with an external thread swaged, to give accurate adjustment without over complicating the system. Using a simple I-SYS® stainless steel hexagon nut or the I-SYS® stainless steel radius head end stop with internal thread right hand, termination is simple and effective on your balustrade in-fill or facade.
To purchase I-SYS® stainless steel pre-made wire rope assemblies utilising the end stop below and using the external thread swaged, click here to be redirected.
Material: Stainless steel AISI 316L - kN = Breaking load - All dimensions are giving in millimetres unless otherwise stated.
Buy Assembly
| Choose a type: | |
| Specify quantity: | |
| Price | |||||||

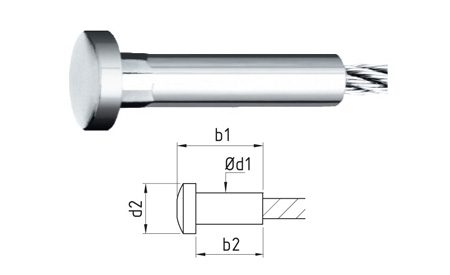

| Part number | ø rope | b1 | b2 | ød1 | ød2 | kN | For Component |
| 869-0200 | 2 | 24 | 21 | 5 | 8 | 2.9 | £2.37 |
| 869-0300 | 3 | 35 | 31 | 6 | 10 | 6.7 | £2.90 |
| 869-0400 | 4 | 40 | 36 | 7 | 12 | 11.9 | £3.36 |
| 869-0500 | 5 | 47 | 42 | 8 | 14 | 18.5 | £4.16 |
| 869-0600 | 6 | 58 | 52 | 10 | 16 | 26.7 | £4.66 |
| 869-0800 | 8 | 70 | 62 | 13 | 22 | 44.5 | £8.86 |
To purchase I-SYS® stainless steel wire rope to suit the above, click here to be redirected.
