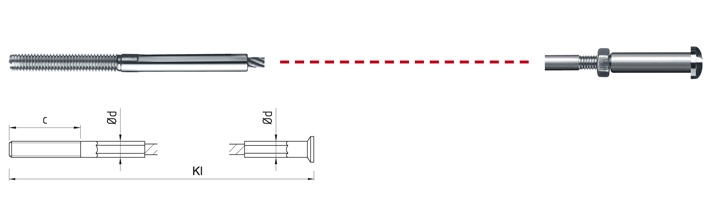

One Side External Thread Swaged, Other Side Countersunk End Stop Swaged IK160
The i-sys range of pre assembled stainless steel cable assemblies can be used for balustrade or walkway infill as well as many other architectural applications . All materials used are of the highest quality and the polished finish on both the stainless steel wire rope and fittings will guarantee a stunning visual appearance .
Please provide a Kl measurement for your one side external thread swaged , other side countersunk end stop swaged.
- High quality stainless steel wire cable
- Pre assembled to your length requirement
- Quick delivery
- Polished surface to give stunning appearance
- Quick and easy installation
Buy Assembly
| Choose a type: | |
| Specify length (KI): | mm |
| Specify quantity: | |
| Thread | Price for assembly | Extra per metre | ||||
| Part number | ø rope | Sk | size x length c | ød | up to & inc 1m | |
| IK 160-0301 | 3 | 7 x 7 | M6 x 60 | 6 | £7.69 | £0.71 |
| IK 160-0401 | 4 | 7 x 7 | M6 x 60 | 7 | £8.58 | £1.14 |
| IK 160-0501 | 5 | 7 x 7 | M8 x 60 | 8 | £9.83 | £1.49 |
| IK 160-0601 | 6 | 7 x 7 | M10 x 60 | 10 | £11.52 | £1.91 |
| IK 160-0800 | 8 | 7 x 7 | M12 x 80 | 13 | £18.00 | £3.21 |
