Low Profile 90º Stop 866

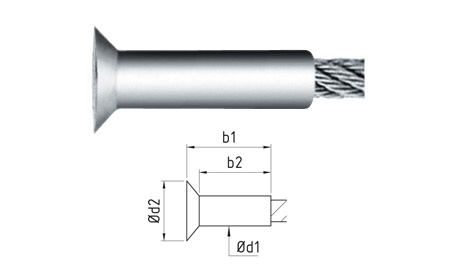

The I-SYS® stainless steel low profile swaged radius head end stop 90º countersunk offers an incredibly univasive appearance due to it's low overall profile (see figure b1 in the table below). This means that the end stop is well suited to smaller profiled posts, balusters or uprights offering minimal protrustion through the post and, with the countersunk end, flush fitting!
This swaged low profile end stop is ideal on small to medium cable runs, offering a simple yet timeless classic look to any balustrade design.
Material: AISI 316L - kN = Breaking load - All dimensions in millimetres unless otherwise stated.
Buy Assembly
| Choose a type: | |
| Specify quantity: | |
| Price | |||||||
| Part number | ø rope | b1 | b2 | ød1 | ød2 | kN | For Component |
| 866-0300-04 | 3 | 10 | 9 | 4.5 | 8 | 3.5 | £2.79 |
| 866-0400-04 | 4 | 13.5 | 12 | 5 | 10 | 6.3 | £3.06 |
| 866-0500-04 | 5 | 18.3 | 15 | 6 | 12 | 9.8 | £3.79 |
| 866-0600-04 | 6 | 22.4 | 18 | 8 | 16 | 14.1 | £3.91 |
| 866-0800-04 | 8 | 27.4 | 23.5 | 10.2 | 20 | 25.1 | £4.36 |
