Int.Thread Swivel Swage 857
Stainless steel internal thread swival swaged connections offers a unique finishing detail whereas the swaged end appears loose on the stainless steel wire rope. Inside the internal thread swivel swaged is a pressed end stop which stops the stainless steel wire rope pulling through the female end, the internal thread is then secured into the body of the terminal.
The internal thread swivel swaged is ideal for balustrades, facades or wire trellis systems where only right hand threads can be used. The fitting allows tension to be applied to the stainless steel wire rope assembly without unscrewing the other end of the wire rope.
The Stainless steel internal thread swivel swaged comes in a variety of sizes, to suit stainless steel wire ropes from: 3mm ø - 6mm ø and offers thread sizes of: M5 - M8 respectively.
Material: Stainless steel AISI 316L - Not suitable for strand 1x19 / 1x37 - kN = Breaking load.
Buy Assembly
| Choose a type: | |
| Specify quantity: | |
| Price | ||||||||

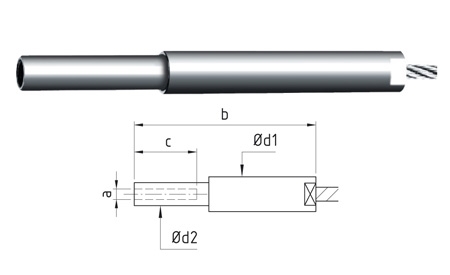

| Part number | ø rope | a | b | c | ød1 | ød2 | kN | For Component |
| 857-0300-020 | 3 | M5 | 91 | 20 | 10 | 8 | 4.6 | £5.28 |
| 857-0300-035 | 3 | M5 | 113 | 35 | 10 | 8 | 4.6 | £5.35 |
| 857-0400-020 | 4 | M6 | 91 | 20 | 10 | 8 | 8.1 | £9.77 |
| 857-0400-035 | 4 | M6 | 113 | 35 | 10 | 8 | 8.1 | £9.87 |
| 857-0500-020 | 5 | M6 | 111 | 20 | 13 | 10 | 12 | £5.05 |
| 857-0500-035 | 5 | M6 | 133 | 35 | 13 | 10 | 12 | £5.81 |
| 857-0600-025 | 6 | M8 | 116 | 25 | 13 | 10 | 12.5 | £5.49 |
| 857-0600-050 | 6 | M8 | 148 | 50 | 13 | 10 | 12.5 | £9.11 |
