Int. Thread Swaged 860/861
The I-SYS® internal thread swaged is one of the standards in balustrade in-fill assemblies. It's versatility is on succeeded by its sleek finish.
The chameleon of the stainless balustrade, the I-SYS® stainless steel internal thread blends in with its surroundings seamlessly and offers fantastic flexibility - whether you require fork ends, eye ends or something in between. The internal thread swaged accommodates all!
Available in thread sizes M4 - M20 respectively, in left hand thread and right hand thread and to suit stainless steel wire ropes from: 2mm ø - 16mm ø, the I-SYS® stainless steel internal thread swaged offers exceptional option in form and design.
To purchase I-SYS® pre-made wire rope assemblies using this item., click here to be redirected.
Material: Stainless steel AISI 316L - kN = Breaking load.
Buy Assembly
| Choose a type: | |
| Specify quantity: | |
| Part number | Price | Part number | Price | ||||||

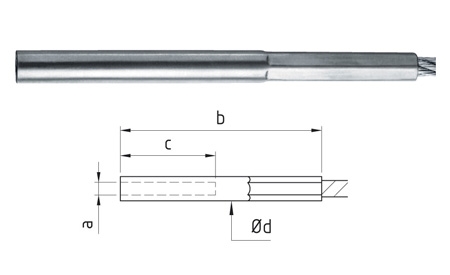

| RH thread | For Component | LH thread | For Component | ø rope | a | b | c | ød | kN |
| 860-0200-015 | £4.14 | 861-0200-015 | £3.95 | 2 | M4 | 45 | 15 | 6 | 2.9 |
| 860-0300-020 | £3.41 | 861-0300-020 | £3.41 | 3 | M5 | 60 | 20 | 7 | 6.7 |
| 860-0300-035 | £4.14 | 861-0300-035 | £4.14 | 3 | M5 | 90 | 35 | 7 | 6.7 |
| 860-0400-020 | £3.76 | 861-0400-020 | £3.76 | 4 | M6 | 65 | 20 | 8 | 11.8 |
| 860-0400-035 | £4.33 | 861-0400-035 | £4.33 | 4 | M6 | 90 | 35 | 8 | 11.8 |
| 860-0500-020 | £3.71 | 861-0500-020 | £3.71 | 5 | M6 | 70 | 20 | 8 | 12 |
| 860-0500-035 | £4.56 | 861-0500-035 | £4.56 | 5 | M6 | 100 | 35 | 8 | 12 |
| 860-0600-025 | £5.89 | 861-0600-025 | £5.89 | 6 | M8 | 90 | 25 | 10 | 16.5 |
| 860-0600-050 | £6.48 | 861-0600-050 | £6.48 | 6 | M8 | 120 | 50 | 10 | 16.5 |
| 860-0800-060 | £11.41 | 861-0800-060 | £11.41 | 8 | M10 | 180 | 60 | 13 | 26 |
| 860-1000-081 | £31.08 | 861-1000-081 | £31.08 | 10 | M14 | 185 | 80 | 20 | 69.5 |
