Fork Roll Swaged 681
The I-SYS® stainless steel fork roll swaged gives a unique finish to our stainless steel wire ropes. The fork roll swaged is ideal when the project requires installation on site. This is due to the possibility of purchasing or hiring one of our portable swaging machines (please call for details and pricing). With the Roll swaged fork ends and our portable swaging machine extreme flexibility can be ascertained without losing some inherent security issues when using swageless connections.
An added bonus with our roll swaged threaded ends is that they come with European Technical Approval (ETA-10/0358) which is a recognised standard within the building industry.
Our I-SYS® stainless steel fork roll swaged ends are available to suit stainless steel wires ropes from 6mm ø - 26mm ø
Material: Stainless steel AISI 316L - kN = [cal_Z,B,l] Breaking load.
Buy Assembly
| Choose a type: | |
| Specify quantity: | |
| Price | |||||||||

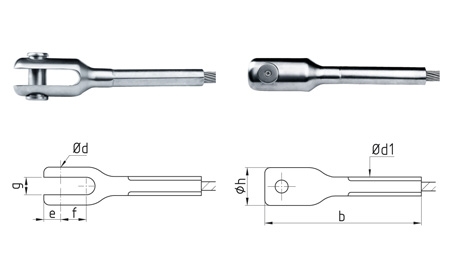

| Part number | ø rope | b | ød | ød1 | e | f | g | h | For Component |
| 681-0600 | 6 | 116 | 10 | 12.5 | 14 | 18 | 10 | 22 | £23.95 |
| 681-0800 | 8 | 151 | 12 | 16.1 | 16 | 24 | 12 | 28 | £40.47 |
| 681-1000 | 10 | 185 | 16 | 17.8 | 20 | 29 | 14 | 34 | £70.51 |
| 681-1200 | 12 | 220 | 20 | 21.4 | 25 | 35 | 17 | 41 | £141.33 |
| 681-1400 | 14 | 238 | 23 | 24.9 | 28 | 41 | 20 | 48 | £182.45 |
| 681-1600 | 16 | 286 | 26 | 28 | 33 | 48 | 22 | 54.5 | £174.47 |
All of our stainless steel wire ropes to suit our I-SYS® stainless steel components and fittings can be found here.
