Fork Internal Thread 817
The I-SYS® stainless steel fork with internal thread is solid by design, giving a robust, yet perfectly formed cylinder type fork end connection.
manufactured out of solid stainless steel, the fork with internal thread offers a unique option when tensioning stainless steel wire rope assemblies.
Our stainless steel fork with internal thread is available in left hand thread and right hand thread, which allows tension to be created within any stainless steel wire rope assembly.
The stainless steel fork end is available is sizes from: M5 - M24 respectively, please see the table below for further information.
Should you wish to purchase I-SYS® pre-made cable assemblies utilising this product, please click here for further information.
Material: Stainless steel AISI 316 - Fork with internal thread is compatible with Eye with internal thread.
Buy Assembly
| Choose a type: | |
| Specify quantity: | |
| Price | Price | ||||||||||
| Part number | For Component | Part number | For Component | ||||||||

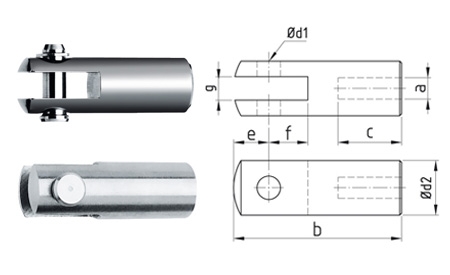

| RH thread | LH thread | a | b | c | ød1 | ød2 | e | f | g | ||
| 817-0600 | £7.61 | 818-0600 | £7.61 | M6 | 43 | 18 | 6 | 14 | 9 | 10 | 6 |
| 817-0800 | £8.76 | 818-0800 | £8.76 | M8 | 54 | 24 | 8 | 18 | 12 | 12.5 | 7 |
| 817-1000 | £11.24 | 818-1000 | £11.24 | M10 | 69 | 30 | 10 | 22 | 15 | 15 | 8 |
| 817-1200 | £19.63 | 818-1200 | £19.63 | M12 | 81 | 36 | 12 | 26 | 17 | 18 | 10 |
| 817-1600 | £38.54 | 818-1600 | £38.54 | M16 | 100 | 40 | 16 | 34 | 22 | 22 | 12 |
| 817-2000 | £65.76 | 818-2000 | £65.76 | M20 | 122 | 40 | 20 | 42 | 27 | 27 | 15 |
