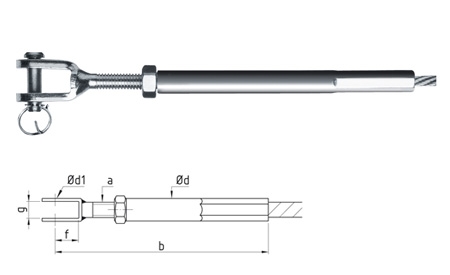

Fork Int. Swaged 812/811
The I-SYS® stainless steel fork with internal thread swaged offers a sleek and sophisticated look to any balustrade in-fill. It's low size to stainless steel wire rope diameter, the stainless steel fork with internal thread swaged combines functionality with robust and aesthetically pleasing design.
The fork end with internal thread swaged is available in various sizes to suit stainless steel wire ropes from: 3mm ø - 16mm ø and offers adjustment in the thread sizes from M5 - M20 respectively.
To purchase I-SYS® stainless steel pre-made wire rope assemblies using the fork end below, please click here for further information.
Buy Assembly
| Choose a type: | |
| Specify quantity: | |
| Part number | Price | Part number | Price | |||||||||
| RH thread | For Component | LH thread | For Component | ø rope | a | b | ød | ød1 | f | g | Adjustment | kN |
| 812-0300-02 | £6.96 | 811-0300-02 | £6.99 | 3 | M5 | 136 | 7 | 5 | 12 | 7.5 | +12 | -17 | 6.7 |
| 812-0400-02 | £6.64 | 811-0400-02 | £6.70 | 4 | M6 | 135 | 8 | 5 | 12 | 7.5 | +11 | -17 | 9.5 |
| 812-0500-02 | £6.87 | 811-0500-02 | £6.93 | 5 | M6 | 145 | 8 | 5 | 12 | 7.5 | +11 | -17 | 12 |
| 812-0600-02 | £9.02 | 811-0600-02 | £9.05 | 6 | M8 | 173 | 10 | 6 | 13 | 10 | +17 | -25 | 16.5 |
| 812-0800-01 | £15.79 | 811-0800-01 | £15.90 | 8 | M10 | 248 | 13 | 8 | 15 | 11 | +17 | -27 | 26 |
| 812-1000-01 | £44.90 | 811-1000-01 |
£45.33 |
10 | M14 | 295 | 20 | 12 | 25 | 14 | +26 | -40 | 62 |
All of our stainless steel wire ropes to suit our I-SYS® stainless steel components and fittings can be found here.
