F50 Hammered 950/951
The F50 Hammered Swaged External Thread are designed to be pressed in our factory. They provide an ideal solution if a small outer diameter body is required to pass through an existing balustrade or facade. Typically the overall diameter of the pressed male stud is exactly the same diameter as the stainless steel wire rope is it mounted to.
The thread lengths of the external threads are available in 30mmm and 60mm lengths to give varying amounts of adjustment and tension in your design application. These male ends are available in left hand or right hand thread options.
To suit Stainless Steel Wire Rope Sizes of 4mm ø - 8mm ø with thread sizes from M4 - M8 respectively.
If you would like to buy pre-made cable assemblies utilising the stainless steel F50 Hammered swaged external thread, click here to be redirected.
Material: Stainless steel AISI 316L - Not suitable for strands - kN = Breaking load
Buy Assembly
| Choose a type: | |
| Specify quantity: | |
| Part number | Price | Part number | Price | ||||||

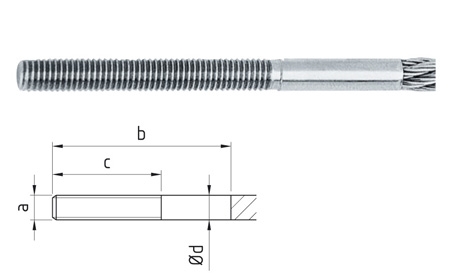

| RH thread | For Component | LH thread | For Component | ø rope | a | b | c | ød | kN |
| 950-0400-30 | £3.47 | 951-0400-30 | £3.27 | 4 | M4 | 55 | 30 | 4.4 | 5.3 |
| 950-0400-60 | £3.84 | 951-0400-60 | £3.62 | 4 | M4 | 85 | 60 | 4.4 | 5.3 |
| 950-0500-30 | £3.96 | 951-0500-30 | £3.73 | 5 | M5 | 60 | 30 | 5.5 | 8.4 |
| 950-0500-60 | £4.17 | 951-0500-60 | £3.93 | 5 | M5 | 90 | 60 | 5.5 | 8.4 |
| 950-0600-30 | £4.64 | 951-0600-30 | £4.37 | 6 | M6 | 66 | 30 | 6.6 | 12.1 |
| 950-0600-60 | £5.04 | 951-0600-60 | £4.75 | 6 | M6 | 96 | 60 | 6.6 | 12.1 |
| 950-0800-30 | £5.69 | 951-0800-30 | £5.36 | 8 | M8 | 90 | 30 | 8.8 | 21.5 |
| 950-0800-60 | £6.35 | 951-0800-60 | £5.98 | 8 | M8 | 120 | 60 | 8.8 | 21.5 |
