Eye External Thread 885/886
I-SYS® stainless steel eye with external threads allow for direct connection between fork ends and balustrades. the sleek, premium design offers aesthetically pleasing lines with uncompromised useability.
The stainless steel eye ends terminate posts beautifully and allow small fork connections dimensions so not to clog or 'busy' a balustrade, parapet or facade run.
The I-SYS® stainless steel eye with external thread is available in thread sizes from: M5 - M20 with varying thread lengths to suit any application. Please see the table below for full details.
An ideal connection between the IK300 (I-SYS® Both Sides Fork with Internal Thread Swaged). stainless steel wire rope assembly, the I-SYS® stainless steel eye end brings a premium look and feel to any balustrade in-fill design or facade detail.
Material: Stainless steel AISI 316.
Buy Assembly
| Choose a type: | |
| Specify quantity: | |
| Part number | Price | Part number | Price | ||||||||

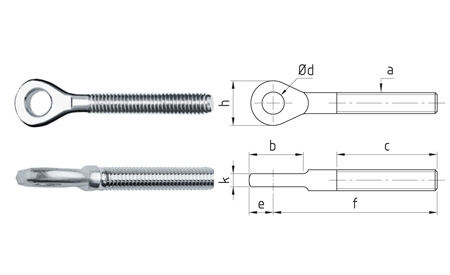

| RH thread | For Component | LH thread | For Component | a | b | c | ød | e | f | h | k |
| 885-0500 | £2.04 | 886-0500 | £2.04 | M5 | 14 | 41 | 5.5 | 6 | 63 | 12 | 3 |
| 885-0500-01 | £1.84 | 886-0500-01 | £1.84 | M5 | 15 | 25 | 5.5 | 6 | 46 | 12 | 3 |
| 885-0600 | £2.47 | 886-0600 | £2.47 | M6 | 16 | 47 | 6.5 | 7 | 61 | 14 | 4 |
| 885-0600-01 | £1.96 | 886-0600-01 | £1.96 | M6 | 16 | 30 | 6.5 | 7 | 44 | 14 | 4 |
| 885-0800 | £2.82 | 886-0800 | £2.82 | M8 | 21 | 57 | 8.5 | 8.5 | 78 | 17 | 5 |
| 885-0800-01 | £2.64 | 886-0800-01 | £2.64 | M8 | 21 | 35 | 8.5 | 9.5 | 55.5 | 17 | 5 |
| 885-1000 | £4.61 | 886-1000 | £4.61 | M10 | 29 | 63 | 10.5 | 12 | 90 | 22 | 6 |
| 885-1200 | £6.29 | 886-1200 | £6.29 | M12 | 31 | 80 | 13 | 14 | 110 | 25 | 8 |
| 885-1400 | £9.03 | 886-1400 | £9.03 | M14 | 34 | 90 | 13 | 14 | 124 | 28 | 9 |
| 885-1600 | £13.00 | 886-1600 | £13.00 | M16 | 37 | 100 | 14.5 | 15.5 | 133 | 31 | 10 |
