Eye Bolt 888
Larger than the stainless steel eye with external thread, the I-SYS® stainless steel eye bolt offers a more rugged appearance to any balustrade, facade or parapet in-fill.
The I-SYS® stainless steel eyebolt is available in thread sizes from: M6 - M20 offering true versatility in selectring the correct eye bolt for your application. the eye bolt also comes in left hand thread and right hand thread to give another choice when designing your balusters etc.
Material: Stainless steel AISI 304
Buy Assembly
| Choose a type: | |
| Specify quantity: | |
| Part number | Price | Part number | Price | |||||||

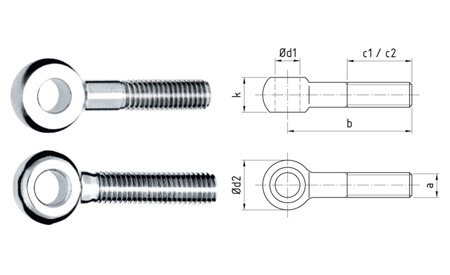

| RH thread | For Component | LH thread | For Component | a | b | c1 | c2 | ød1 | ød2 | k |
| 888-0600-03 | £2.21 | 888-0600-04 | £2.43 | M6 | 40 | 30 | 6.1 | 14 | 7 | |
| 888-0800-03 | £2.18 | 888-0800-04 | £3.20 | M8 | 40 | 30 | 8.1 | 18 | 9 | |
| 888-1000-03 | £2.93 | 888-1000-04 | £3.27 | M10 | 50 | 40 | 10 | 20 | 12 | |
| 888-1200-03 | £3.62 | 888-1200-04 | £4.56 | M12 | 50 | 35 | 12.1 | 25 | 14 |
