External Swaged 850/855
Our main stay in our external thread range. The 850. Swaged Stud offers versatility in design with the fantastic range of thread lengths available, architectural aesthetics with its hex press finish, this male end sits seemlessly in any balustrade infill, facade design or even greenwall applications.
Available in both left hand thread and right hand thread, the stainless steel male end offers great flexiblilty in installation of any externally threaded requirement.
To suit stainless steel wire rope sizes from 1mm ø - 16mm ø with an external thread size from M4 - M24 respectively. Further information can be found below.
If you would like to buy pre-made wire rope assemblies using the threads below, click here to be redirected.
Material: Stainless steel AISI 316L - kN = Breaking load.
Buy Assembly
| Choose a type: | |
| Specify quantity: | |
| Part number | Price | Part number | Price | ||||||

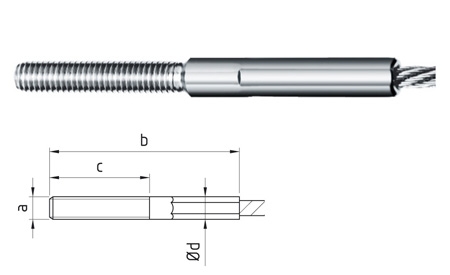

| RH thread | For Component | LH thread | For Component | ø rope | a | b | c | ød | kN |
| 850-0100-020 | £3.67 | 855-0100-020 | £3.67 | 1 | M4 | 35 | 20 | 4 | 0.5 |
| 850-0200-030 | £3.30 | 855-0200-030 | £3.30 | 2 | M5 | 55 | 30 | 5 | 2.8 |
| 850-0200-060 | £3.49 | 855-0200-060 | £3.49 | 2 | M5 | 85 | 60 | 5 | 2.8 |
| 850-0300-030 | £3.42 | 855-0300-030 | £3.42 | 3 | M6 | 70 | 30 | 6 | 6.3 |
| 850-0300-060 | £3.87 | 855-0300-060 | £3.87 | 3 | M6 | 100 | 60 | 6 | 6.3 |
| 850-0400-030 | £3.43 | 855-0400-030 | £3.43 | 4 | M6 | 75 | 30 | 7 | 11 |
| 850-0400-060 | £4.09 | 855-0400-060 | £4.09 | 4 | M6 | 105 | 60 | 7 | 11 |
| 850-0400-061 | £6.22 | 855-0400-061 | £6.22 | 4 | M8 | 105 | 60 | 8 | 11 |
| 850-0500-030 | £4.03 | 855-0500-030 | £4.03 | 5 | M8 | 80 | 30 | 8 | 18 |
| 850-0500-060 | £4.66 | 855-0500-060 | £4.66 | 5 | M8 | 110 | 60 | 8 | 18 |
| 850-0600-060 | £5.78 | 855-0600-060 | £5.78 | 6 | M10 | 120 | 60 | 10 | 25 |
| 850-0600-080 | £5.90 | 855-0600-080 | £5.90 | 6 | M10 | 140 | 80 | 10 | 25 |
| 850-0800-080 | £10.62 | 855-0800-080 | £10.62 | 8 | M12 | 170 | 80 | 13 | 40 |
| 850-0800-120 | £11.16 | 855-0800-120 | £11.16 | 8 | M12 | 210 | 120 | 13 | 40 |
| 850-1000-115 | £28.62 | 855-1000-115 | £28.62 | 10 | M16 | 225 | 115 | 18 | 62 |
| 850-1200-130 | £34.40 | 855-1200-130 | £34.40 | 12 | M20 | 245 | 130 | 20 | 83 |
