Both Sides With External Thread F30 Complete with CS-Fork IK345
The i-sys range of pre assembled stainless steel cable assemblies can be used for balustrade or walkway infill as well as many other architectural applications . All materials used are of the highest quality and the polished finish on both the stainless steel wire rope and fittings will guarantee a stunning visual appearance .
Please provide a Kl measurement for your Both Sides with external thread F30 complete with CS- Fork stainless steel wire rope assembly below.
Quick and easy installation with our pre assembled stainless steel cable assemblies.
- High quality stainless steel wire cable
- Pre assembled to your length requirement
- Quick delivery
- Polished surface to give stunning appearance
- Quick and easy installation
Buy Assembly
| Choose a type: | |
| Specify length (KI): | mm |
| Specify quantity: | |
| Price for assembly | Extra per metre | |||||||||

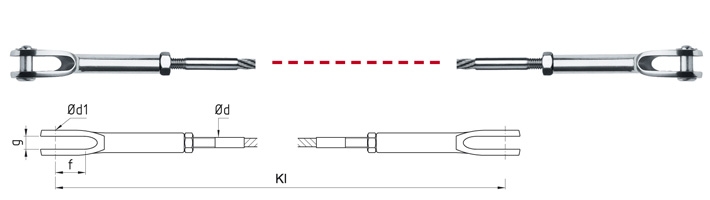

| Part number | ø rope | Sk | Thread | Adjustment | ød | f | g | ød1 | up to & inc 1m | |
| IK 345-0400 | 4 | 7 x 7 | M5 | +29 | -34 | 4.9 | 14 | 6.5 | 6 | £22.55 | £0.96 |
| IK 345-0500 | 5 | 7 x 7 | M6 | +29 | -34 | 5.9 | 14 | 6.5 | 6 | £24.46 | £1.25 |
| IK 345-0600 | 6 | 7 x 7 | M8 | +30 | -49 | 7.9 | 19 | 8.5 | 8 | £29.09 | £1.60 |
| IK 345-0800 | 8 | 7 x 7 | M10 | +30 | -49 | 9.9 | 19 | 8.5 | 8 | £32.69 | £2.70 |
