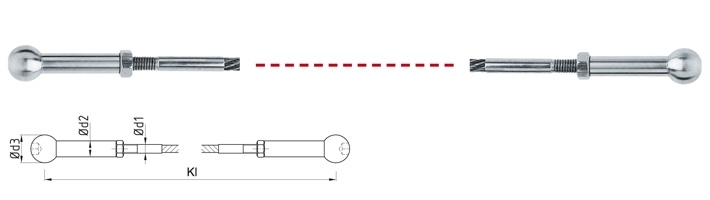

Both Sides with External Thread F30 and Swageless-on Ball Head IK190
The i-sys range of pre assembled stainless steel cable assemblies can be used for balustrade or walkway infill as well as many other architectural applications . All materials used are of the highest quality and the polished finish on both the stainless steel wire rope and fittings will guarantee a stunning visual appearance .
Please provide a Kl measurement for your both sides with external thread F30 and swageless - on Ball Head
- High quality stainless steel wire cable
- Pre assembled to your length requirement
- Quick delivery
- Polished surface to give stunning appearance
- Quick and easy installation
Buy Assembly
| Choose a type: | |
| Specify length (KI): | mm |
| Specify quantity: | |
| Price for assembly | Extra per metre | ||||||||
| Part number | ø rope | Sk | Thread | Adjustment | ø d1 | ø d2 | ø d3 | up to & inc 1m | |
| IK 190-0400 | 4 | 7 x 7 | M5 | +5 | -20 | 4.9 | 7 | 14 | £15.18 | £1.14 |
| IK 190-0500 | 5 | 7 x 7 | M6 | +5 | -20 | 5.9 | 8 | 14 | £17.20 | £1.49 |
