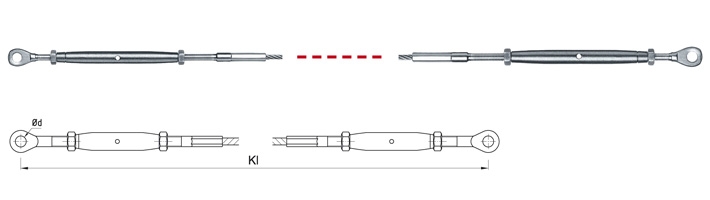

Both Sides Turnbuckle with Eye Swaged IK420
The i-sys range of pre assembled stainless steel cable assemblies can be used for balustrade or walkway infill as well as many other architectural applications . All materials used are of the highest quality and the polished finish on both the stainless steel wire rope and fittings will guarantee a stunning visual appearance .
Please provide a Kl measurement for you rboth sides turnbuckle with eye swaged stainless steel wire rope assembly below.
- High quality stainless steel wire cable
- Pre assembled to your length requirement
- Quick delivery
- Polished surface to give stunning appearance
- Quick and easy installation
Buy Assembly
| Choose a type: | |
| Specify length (KI): | mm |
| Specify quantity: | |
| Price for assembly | Extra per metre | ||||||
| Part number | ø rope | Sk | Thread | Adjustment | ø d | up to & inc 1m | |
| IK 420-0200 | 2 | 7 x 7 | M5 | +52 | -86 | 5,5 | £17.27 | £0.42 |
| IK 420-0300 | 3 | 7 x 7 | M6 | +56 | -100 | 6,5 | £21.00 | £0.71 |
| IK 420-0401 | 4 | 7 x 7 | M8 | +68 | -100 | 8,5 | £30.28 | £1.14 |
| IK 420-0500 | 5 | 7 x 7 | M8 | +68 | -100 | 8,5 | £27.18 | £1.49 |
| IK 420-0600 | 6 | 7 x 7 | M10 | +60 | -100 | 10,5 | £39.62 | £1.91 |
| IK 420-0800 | 8 | 7 x 7 | M12 | +92 | -140 | 13 | £62.31 | £3.21 |
| IK 420-1000 | 10 | 7 x 19 | M16 | +96 | -180 | 14,5 | £141.40 | £5.36 |
