Both Sides Turnbuckle Swaged IK110
The i-sys range of pre assembled stainless steel cable assemblies can be used for balustrade or walkway infill as well as many other architectural applications . All materials used are of the highest quality and the polished finish on both the stainless steel wire rope and fittings will guarantee a stunning visual appearance .

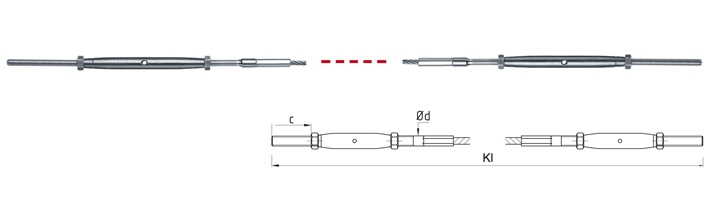

Please provide a Kl measurement for your both sides Swaged Turnbuckle stainless steel wire rope assembly below.
- High quality stainless steel wire cable
- Pre assembled to your length requirement
- Quick delivery
- Polished surface to give stunning appearance
- Quick and easy installation
Buy Assembly
| Choose a type: | |
| Specify length (KI): | mm |
| Specify quantity: | |
| Part number | |||||||
| both sides | Thread | Price for assembly | Extra per metre | ||||
| RH thread | ø rope | Sk | size x length c | Adjustment | ød | up to & inc 1m | |
| IK 110-0400 | 4 | 7 x 7 | M6 x 60 | +56 | -100 | 7 | £20.49 | £1.14 |
| IK 110-0500 | 5 | 7 x 7 | M8 x 60 | +68 | -100 | 8 | £27.23 | £1.49 |
| IK 110-0600 | 6 | 7 x 7 | M10 x 60 | +60 | -100 | 10 | £34.39 | £1.91 |
| IK 110-0800 | 8 | 7 x 7 | M12 x 60 | +92 | -140 | 13 | £55.58 | £3.21 |
| IK 110-1000 | 10 | 7 x 19 | M16 x 60 | +96 | -180 | 18 | £135.11 | £5.36 |
