Both Sides F30 Hammered IK120
The i-sys range of pre assembled stainless steel cable assemblies can be used for balustrade or walkway infill as well as many other architectural applications . All materials used are of the highest quality and the polished finish on both the stainless steel wire rope and fittings will guarantee a stunning visual appearance .

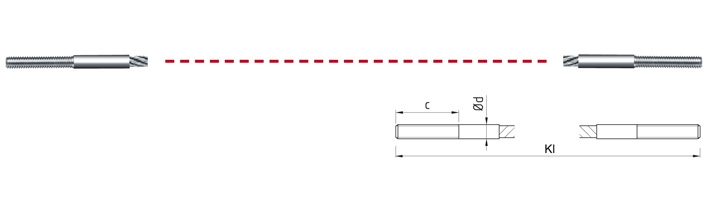

Please provide a Kl measurement for your both sides F30 hammered stainless steel wire rope assembly below.
- High quality stainless steel wire cable
- Pre assembled to your length requirement
- Quick delivery
- Polished surface to give stunning appearance
- Quick and easy installation
Buy Assembly
| Choose a type: | |
| Specify length (KI): | mm |
| Specify quantity: | |
| Part number | Part number | |||||||
| both sides | Price for assembly | one LH thread | Price for assembly | Thread | Extra per metre | |||
| RH thread | up to & inc 1m | one RH thread | up to & inc 1m | ø rope | Sk | size x length c | ø d | |
| IK 120-0300 | £6.41 | N/A | £6.41 | 3 | 7 x 7 | M4 x 20 | 3.9 | £0.71 |
| IK 120-0400 | £7.28 | IK 121-0400 | £7.28 | 4 | 7 x 7 | M5 x 30 | 4.9 | £1.14 |
| IK 120-0401 | £7.41 | IK 121-0401 | £7.41 | 4 | 7 x 7 | M5 x 50 | 4.9 | £1.14 |
| IK 120-0500 | £9.52 | IK 121-0500 | £9.52 | 5 | 7 x 7 | M6 x 30 | 5.9 | £1.49 |
| IK 120-0501 | £9.61 | IK 121-0501 | £9.61 | 5 | 7 x 7 | M6 x 50 | 5.9 | £1.49 |
| IK 120-0600 | £11.88 | IK 121-0600 | £11.88 | 6 | 7 x 7 | M8 x 30 | 7.9 | £1.91 |
| IK 120-0601 | £12.24 | IK 121-0601 | £12.24 | 6 | 7 x 7 | M8 x 60 | 7.9 | £1.91 |
| IK 120-0801 | £16.28 | IK 121-0801 | £16.28 | 8 | 7 x 7 | M10 x 60 | 9.9 | £3.21 |
| IK 120-1001 | £26.95 | IK 121-1001 | £26.95 | 10 | 7 x 19 | M12 x 60 | 11.9 | £5.36 |
